IntroductionSMD2835 Flexible Led Strip
Specification:
|
Model: GW-508160-28 |
Led strip Type |
SMD2835 Led strip |
|
|
Color |
Red/Yellow/Blue/ Green//Cool White/Warm white/Natural white |
||
|
Power |
7.2/12 |
W |
|
|
Output Voltage |
12/24 |
V |
|
|
Lm/SMD2835 (white color) |
18-20/22-24 |
LM |
|
|
Size |
1000*8 |
mm |
|
|
Led Qty/meter |
60 |
pcs |
|
|
Led type |
SMD2835 |
|
|
|
FPC color |
White/yellow |
||
|
Beam angle |
120° |
||
|
Waterproof rate |
IP33 (IP65/IP67/IP68 is available) |
||
| CRI |
>75, >80, >90 |
||
|
Light Decay |
<3% (After 3000hours ） |
||
|
Work Temperature |
-30℃ to +55℃ |
||

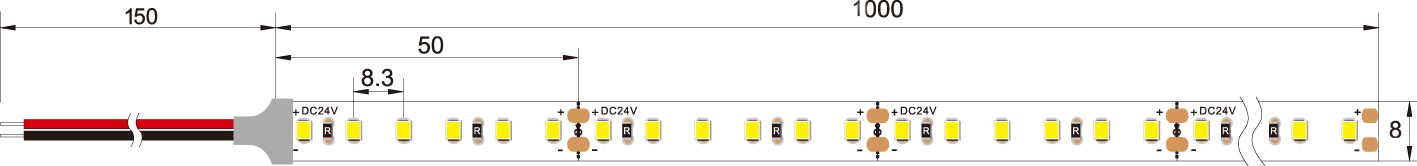

2. Item Diagram:
Dimensions: L1000*W8mm
3. Feature:
1. We use the double layer &pure copper circuit board for our led strip PCB, It will get better electrical conductivity and thermal conductivity,so that get better heat dissipation and longer working lifetime.
2. our led chip contain six gold wire, It will get high luminous efficiency and Uniform illumination.
3. High brightness and high CRI SMD2835 as led chips, make the good chooice for you.
4. can be anti-static, flame retardant, abrasion resistance, chemical resistance.
4. Application：
LED light box, LED advertisement signboard, LED letter, LED sign etc
