Introduction1. Technical parameters:
|
Model: GW-5010160-50RGB |
Led strip Type |
SMD5050 RGBW Led Strip |
|
|
Color |
RGBW |
||
|
Power |
14.4 |
W |
|
|
Output Voltage |
12/24 |
V |
|
|
Current |
120/60 |
MA |
|
|
Wavelength/Lumen |
Red(620-630nm),Blue(460-470nm), Green(520-525nm),White(1200LM/m) |
|
|
|
Size |
1000*12 |
mm |
|
|
Led Qty/meter |
60 |
pcs |
|
|
Led type |
5050 SMD |
|
|
|
FPC color |
White |
||
|
Beam angle |
120¡ã |
||
|
Waterproof rate |
IP33/IP65/IP67/IP68 is avaiable |
||
|
CRI |
>75,>80, >90 |
||
|
Work Temperature |
-30¡æ to +55¡æ |
||

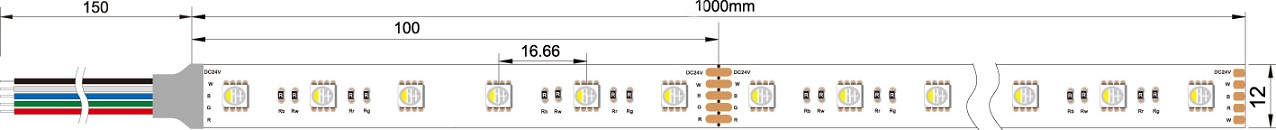

2. Item Diagram:
Dimensions: L1000*W12mm
3.Feature:
1. We use the double layer &pure copper circuit board for our led strip PCB, It will get better electrical conductivity and thermal conductivity,so that get better heat dissipation and longer working lifetime.
2. our led chip contain eight gold wire, It will get high luminous efficiency and Uniform illumination.
3. High brightness and high CRI SMD5050 as led chips, make the good chooice for you.
4. can be anti-static, flame retardant, abrasion resistance, chemical resistance.
4. Application£º
LED light box, LED advertisement signboard, LED letter, LED sign etc
